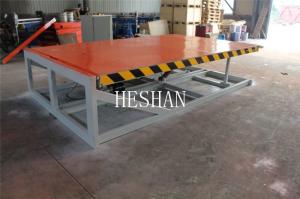

Warehouse Loading Dock Leveler 8T Hydraulic Dock Edge Leveler

  • 1
  • 2

Brand Name : HESHAN

Model Number : LDR

Certification : CE,ISO,SGS,ROHS

Place of Origin : China

MOQ : 1 set

Price : USD 1000~USD 3000

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 10000 set per year

Delivery Time : 15-25 work days

Packaging Details : Export packing cases

Table size : L2000mm/2500mm*W2000mm

Lift drive / actuation : Hydraulic,Electric Motor

Rated loading capacity : 6ton,8ton,10ton,12ton

Voltage : Local Voltage,110v 220v 240v 380v Optional,220/380V 50/60hz,Manual,220V/380V/415V

Keywords : fixed dock leveler,Hydraulic Dock Leveler/Dock Leveller,loading and unloading platform

Warranty : 2 Years

Weight : 800kg

Lift mechanism : hydraulic cylinder

After-sales service provided : Free spare parts, Online support

Application : Bridges loading ramps, yard ramp for loading, portable ramp, goods loading and unloading

Type : stationary/fixed dock leveller/dock plate

Color : Blue, Green, Customers' Requirements, customized, optional

Availability : In Stock

Controls : Push Button

Deck Height : Adjustable

Finish : Powder Coated

Contact Now

8t Truck Ramp Hydraulic Warehouse Loading Dock Leveler Dock Edge Leveler

Warehouse Loading Dock Levelers, including the 8T Hydraulic Dock Edge Leveler, are commonly used in various types of warehouses, such as manufacturing facilities, distribution centers, and logistics hubs. The use of these loading dock levelers can significantly improve the efficiency and safety of loading and unloading operations, reducing the risk of worker injuries and damage to goods. By creating a smooth and level transition between the truck and the warehouse floor, these levelers make it easier and faster to move goods in and out of the warehouse, ultimately improving productivity and reducing costs.

Specifications:

Model No. SDB-6 SDB-8 SDB-10 SDB-12
Load Capacity (t) 6 8 10 12
Platform Size (mm) L2000/2500*W2000 L2000/2500*W2000 L2000/2500*W2000 L2000/2500*W2000
Lip Width (mm) 400 400 400 400
Travel Height (mm) Updip 300 300 300 300
Downdip 200 200 200 200
Motor Power (kw) 0.75 0.75 0.75 0.75
Pit Size (mm) 2080/2580*2040*600 2080/2580*2040*600 2080/2580*2040*600 2080/2580*2040*600
Electrical appliance Delixi Delixi Delixi Delixi
1X40’container Qty. 20sets 20sets 20sets 20sets

Warehouse Loading Dock Leveler 8T Hydraulic Dock Edge LevelerWarehouse Loading Dock Leveler 8T Hydraulic Dock Edge Leveler

A dock edge leveler, also known as an edge of dock leveler or dock lip leveler, is a type of loading dock equipment designed to bridge the gap between the loading dock and the truck bed, facilitating safe and efficient loading and unloading of goods. It is typically installed at the edge of the loading dock area and provides a smooth transition for material handling equipment.
Easy Installation: Dock edge levelers are designed for straightforward installation, typically requiring minimal modifications to the loading dock structure. They are surface-mounted to the edge of the dock, eliminating the need for a recessed pit.
Mechanical or Hydraulic Operation: Dock edge levelers can be operated using mechanical or hydraulic systems. Mechanical levelers are manually operated using a handle or lever mechanism, while hydraulic levelers utilize hydraulic cylinders for smooth and controlled movement.
